Generic Kenwood (mode=4)
(updated 2009-03-10)


2009-01-18

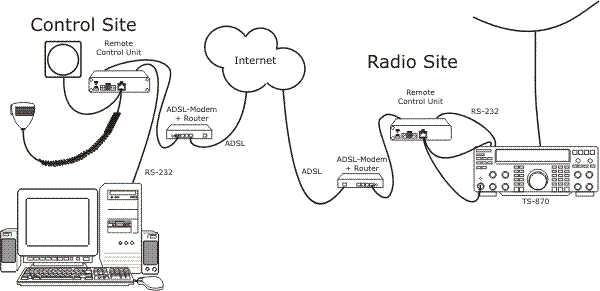

RRC-1258 also supports the kenwoods protocol used by almost every kenwood radio. Then you have to use a PC-software ex. HamRadioDeLuxe or a similar rig control software at the control site. All audio and data communication goes true the RRC:s so you don't have to worry about the audio quality. No more problems with soundcards and Skype etc. And most important, you don't need a PC at the remote site.



TS-870 and RRC-1258

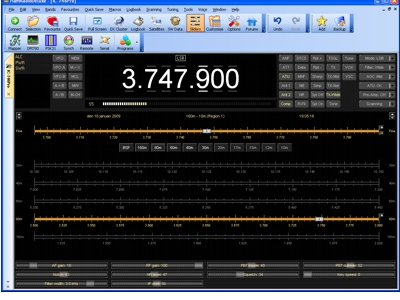

HamRadioDeLuxe

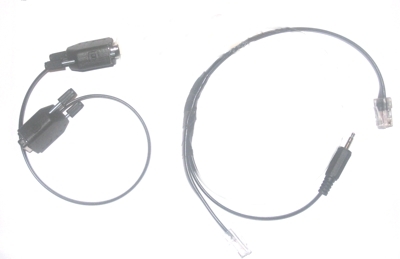

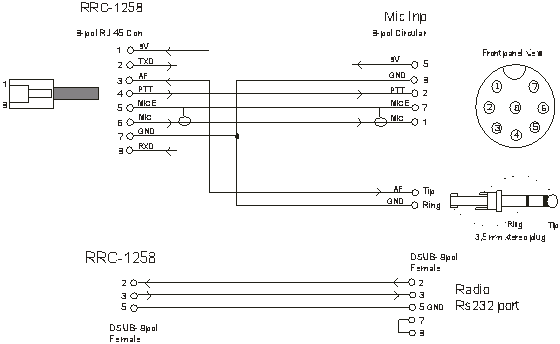

Cable RRC-1258 to Kenwood Radio

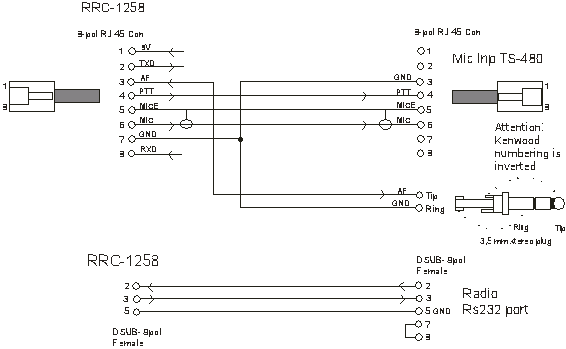

Cable used to connect the RRC to  the Radio (TS-480).


















Keep the cable from RRC to radio short. Use shielded mic cable. The mic signal is sensitive of HF from antennas etc as usual.

Printer friendly drawing =>

'

Keep the cable from RRC to radio short. Use shielded mic cable. The mic signal is sensitive of HF from antennas etc as usual.

Printer friendly drawing =>

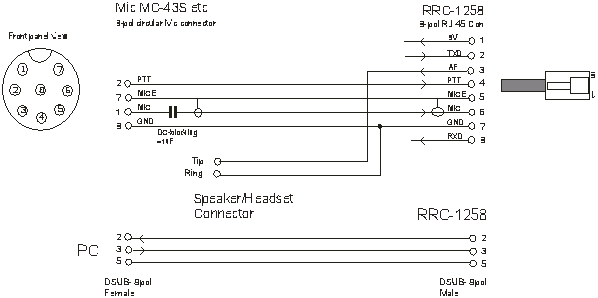

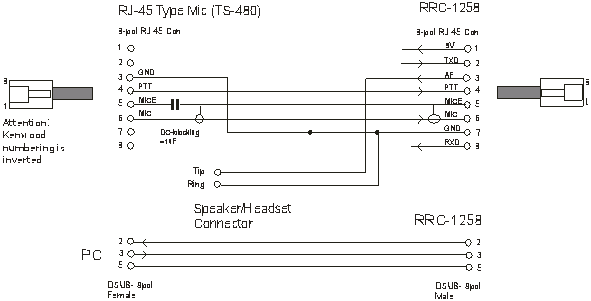

Cable from Mic/Speaker/PC to RRC

Printer friendly drawing =>

Printer friendly drawing =>

When you have finished the cable production always test them with the 2xRJ-45 extender before connecting them to the RRC:s. Drawing 2xRJ-45





The web interface is used to connect or disconnect from/to the remote site. The Disconnect/Connect feature is placed on the status page
