Antenna Switch 1269


High performance remote controlled 10 way antenna switch.

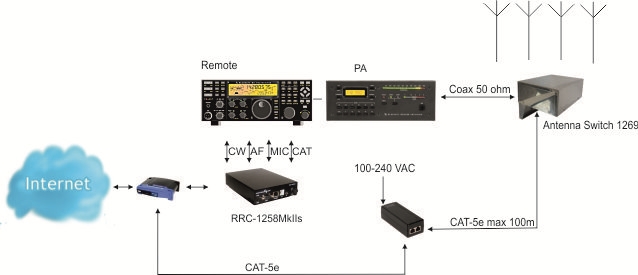

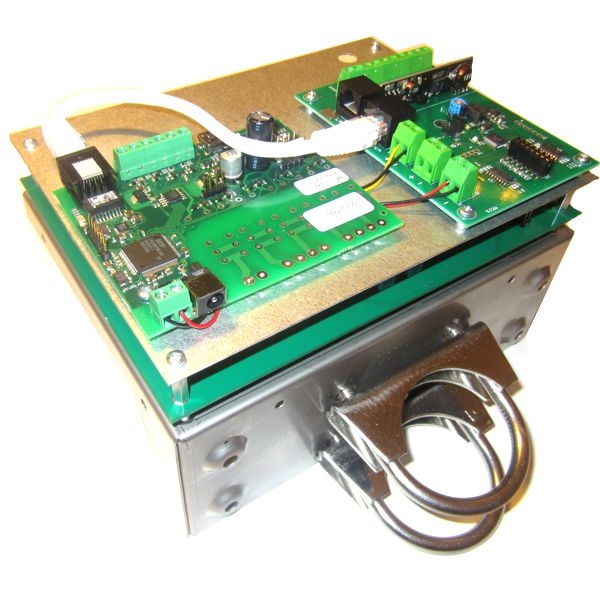

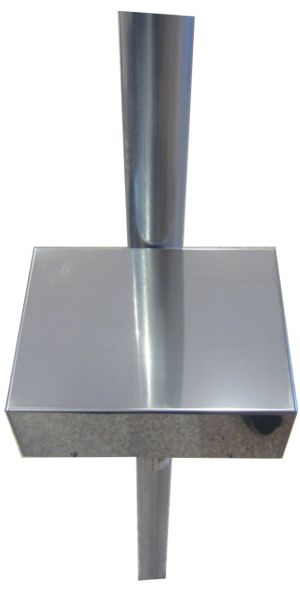

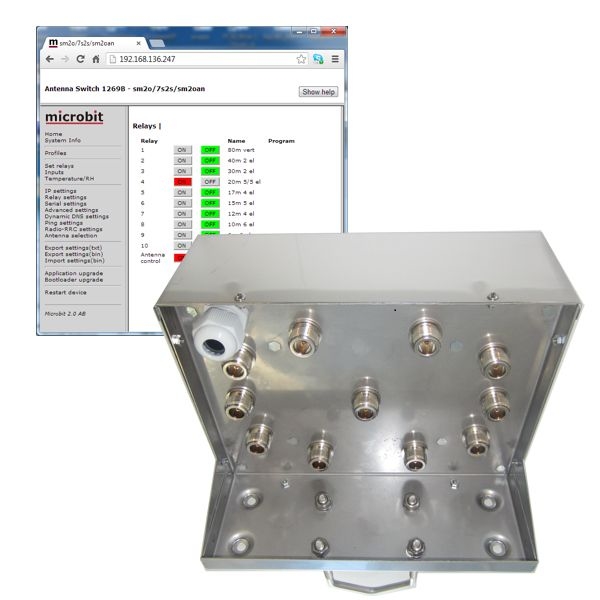

The switch is designed specially to be used for remote (over the Internet ) controlled systems, but can of course be used in other applications also. The switch can be manually controlled via an internal web interface. Together with Remoterig RRC-1258 it can be setup to automatically follow your band changes. The switch connects to the RRC over IP, no serial port is needed. Normally it is powered with 48V via the Ethernet cable according to the PoE standard. This means that the switch can be placed in a tower 100m from the schack. The switch is built in stainless steel and can be placed outdoor. It can be ordered with N-connectors or SO-239 both with PTFE dielectric.



Specifications

Frequency Range:…………………………1,6-55 MHz
Characteristic impendance:………………….50 ohm
Outputs:(*1)……………………………………………10
Inputs:……………………………………………………1
Supply voltage PoE (IEEE802.3af):……………..48V
Supply voltage Local:………………………….12-15V
Power consumption PoE:……………………….60 mA
Power consumption Local:………………….<200 mA
Connectors:…………….PTFE dielectric N or SO-239
SWR (1.8-50 MHz):……………………………..<1.1:1
Insert loss (1.8-30 MHz):……………………<0.03 dB
Insert loss (50 MHz):…………………………<0.05 dB
Power rating (1.8-30 MHz, SWR <1.3:1)………5kW
Power rating (1.8-30 MHz, SWR <2:1)……….2.5kW
Power rating (1.8-30 MHz, SWR <3:1)……….1.5kW
Ethernet connection(*2):…. RJ45 or 10 pos terminal
Mast clamps:…………………….Stainless Steel 51mm
Operating temp:……………………………-40 -+60 C
Dimensions (WxDxH):……………..200x155x140mm
Weight:……………………………………………..0.5 Kg

 image  (*1) All unused antenna outputs are grounded, The RF card control lines are surge protected with Metal Oxide Varistors

(*2) The control cable should be shielded (FTP) CAT-5e or better.







Users manual can be downloaded from the Users manaul page

Orders can be placed in the webshop

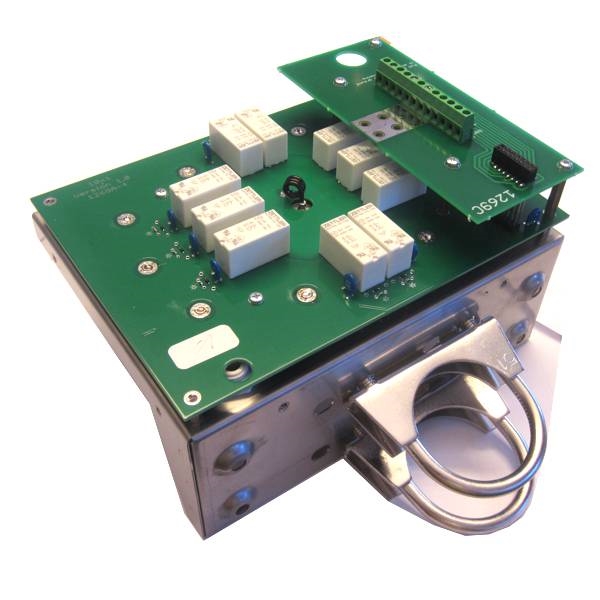

image There is a less lower cost version available also which has no built in remote control. You select the antenna by grounding the the input (screew terminal). The RF data is exactly the same as for the remote switch only the control is different.

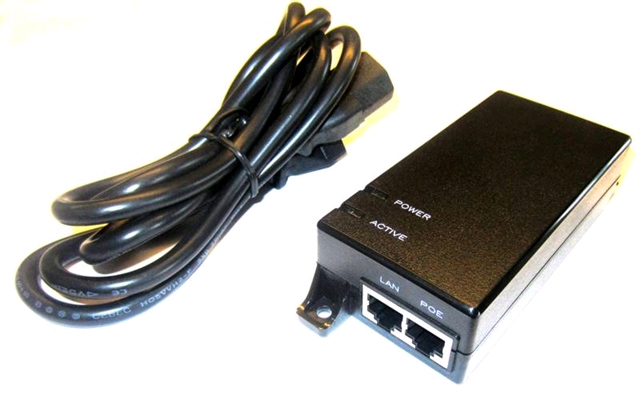

A PoE Power supply is available in the webshop

Vin =100-240VAC

Vout = 48VDC/0.6A

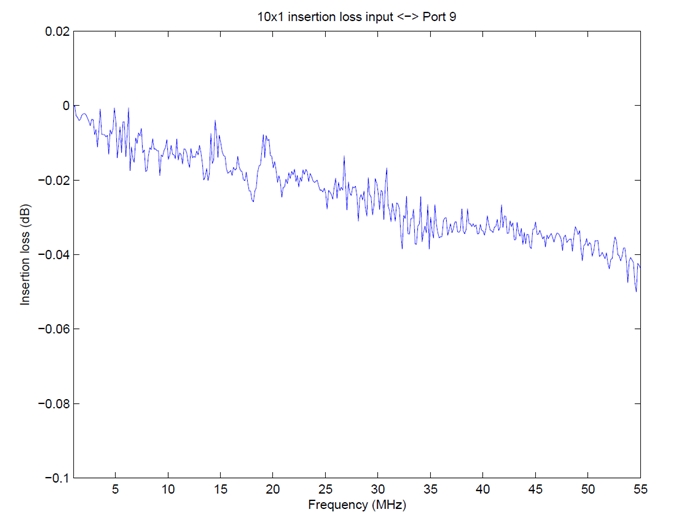

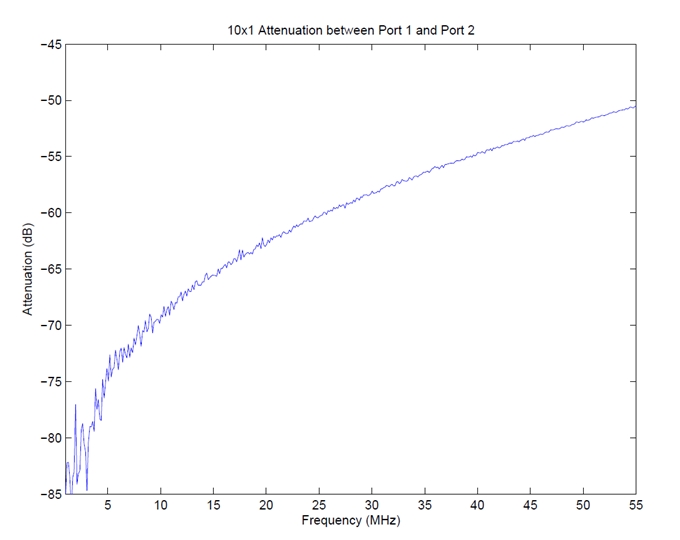

Below you can see some examples of the measured data done by Mike SJ2W who has developed the RF-board. The measurements are done with Rohde & Schwarz ZVR-series Vector Network Analyzer
