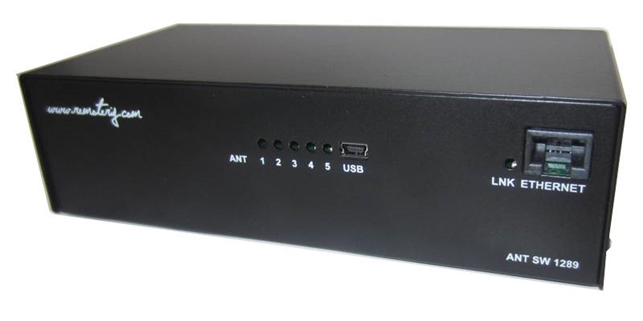

Antenna Switch AS-1289


High performance remote controlled 5 way antenna switch.

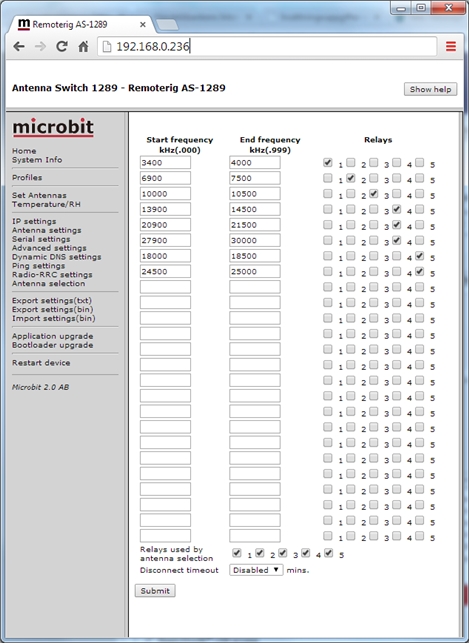

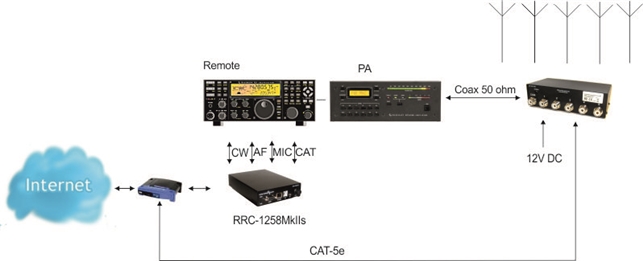

The  switch is designed specially to be used for remote (over the Internet ) controlled systems, but can of course be used in other applications also. The switch can be manually controlled via an internal web interface. Together with Remoterig RRC-1258 it can be setup to automatically follow your band changes (*). The switch connects to the RRC over IP, no serial port is needed. It is powered with 12V DC. It is made for indoor use and can be wall mounted or placed on a desk/shelf.  The switch is equiped with PTFE dielectric SO-239.

The new 5-way AS-1289 has the same functionality as the 10-way AS-1269 but it’s made for indoor use and has no PoE support.

(*) with an optional RS232 Interface the AS-1289 can be controlled direct by a Radio if no Remoterig system are available.


Specifications

Frequency Range:…………………………1,6-55 MHz
Characteristic impendance:………………….50 ohm
Outputs:(*1)…………………………………..…………5
Inputs:……………………………………………………1
Supply voltage Local:………………………….12-15V
Power consumption Local:………………….<200 mA
Connectors:……………….….PTFE dielectric SO-239
SWR (1.8-50 MHz):…………………..….…..<1.17:1
Insert loss (1.8-30 MHz):……………….…<0.04 dB
Insert loss (50 MHz):…………………………<0.07 dB
Power rating (1.8-30 MHz, SWR <1.3:1)………2kW
Ethernet connection(*2):………………………….. RJ45
LED:s………………………………. ANT1-5, PWR, Link
Operating temp:……………………………-40 -+60 C
Dimensions (WxDxH):……………..175x100x55mm
Weight:……………………………………………..0.7 Kg



(*1) All unused antenna outputs are grounded, The RF card control lines are surge protected with Metal Oxide Varistors

(*2) The control cable should be shielded (FTP) CAT-5e or bette
