Accessories

Web-based remote control for ACOM-2000A, Expert 1K-FA, Elecraft KPA500, SteppIR or Rotators

The RC-1216H is developed especially for remote control of Amateur radio accessories like Antennas, Power Amplifiers and rotators via the Internet in a user-friendly and cost-effective way. Lot of radio accessories are designed to be controlled from a PC via a serial port (RS-232). Serial ports are not very convenient to transfer over the Internet. The RC-1216H acts as PC against the connected equipment at the same time as it shows a more user friendly web based user interface for the operator. The web interface is much more convenient to use over the Internet as no special software need to be installed in the PC and it can be reach from any Internet connected PC or any other device with a webbrowser like a smartphones, pads etc. around the world. For the moment the Remote control RC-1216H can be configured to control SteppIR antennas, the ACOM-2000A, Expert 1K-FA, and Elecraft KPA500 Power Amps, Prositel and, AlfaSpid Rotators, Green Heron controlled rotators and Rotators with DCU-1,ERC or Idiom Press based interfaces.

More info RC-1216H

Order direct from the Web shop

Now also support for Expert 1K-FA and Elecraft KPA500 Power Amps

RC1216H-expert-new

Rotator Control Unit 1216L

To create a web based rotator control the Rotator control Unit (RCU) is connected to the Webswitch 1216H. The RCU is connected via the 1-wire bus to the webswitch. The RCU has three 16A relays for CW and CCW rotation and for break control. For the the azimuth (direction) reading there is  A/D input which handles 0-15V. The A/D input is fully issolated. The RCU can be connected to most of the current available rotators  and rotating tower controls. The indicatior can be calibrated every 30 degrees to handle potentiometers which is not linear.

When using the Webswitch 1216H and the RCU 1216L you do not need to use the RRC-serial ports for rotator control

More Info about the RCU1216L



Web Rotator Control for Prosistel, AlfaSpid, Green Heron, Yaesu etc.

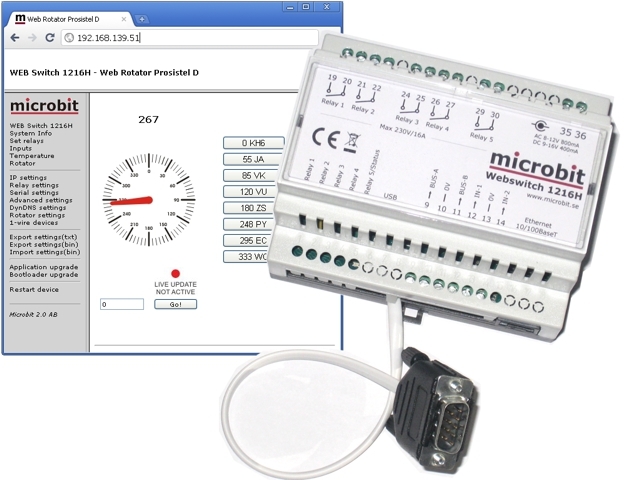

With a RS-232 Adapter cable 1216S and a Webswitch 1216H you can connect  direct to your Prosistel, AlfaSpid, Green Heron or Yaesu Rotator Control box and get a Web based rotator control.

When using the Webswitch 1216H as rotator control you do not need to use the RRC-serial ports for rotator control.




CI-V Interface

The Interface is primarly design to be used when you want to control a IC-7100 via the CI-V interface at the same time as you use the frontpanel. It’s also useful if you want to use the RRC-Nano App with IC-7100. Of course it can also be used for any ICOM radio if you want to connect it to  RRC com2.

The interface is built in into a normal D-sub Housing and provide cables for CI-V, 12V DC-Input and 12V DC output

More info=>

 1232B-CI-V-new

Adapter for IC-7100

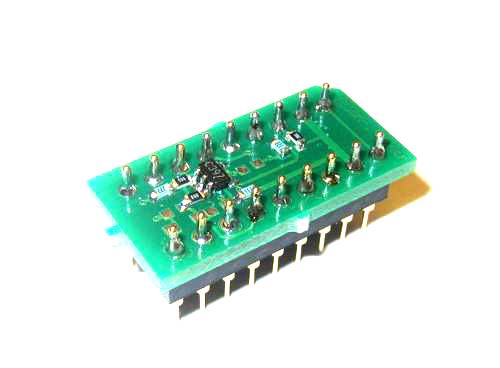

The adapter will make it possible to use IC-7100 of the latest version which have lowered data signal levels in the direction from Control panel to Radio. The adapter also works with the original version of IC-7100. The adapter is mounted in the strapping socket at the Control side.

More info =>

1258M-pcb

RF-protection filter for DSL-modems

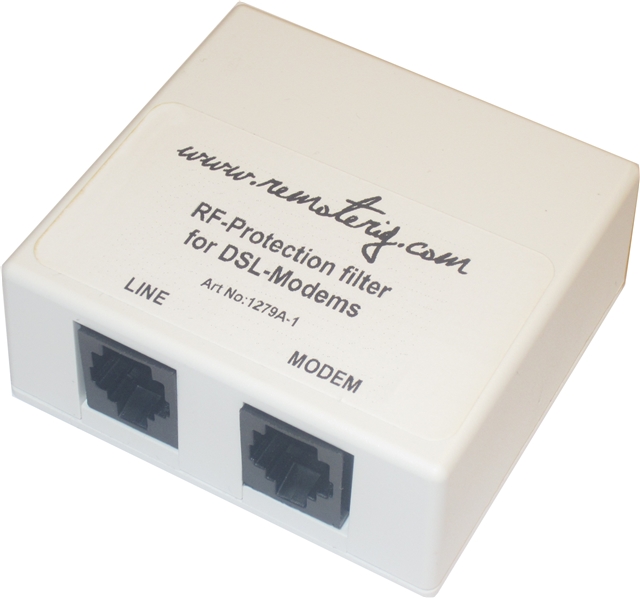

This LP-filter protects DSL-modems from RF-Interference caused by RF from your transmitter. Specially when transmitting on 160m and 80m it’s very common that the RF cause interference or even make the DSL-modem to reset.

The attenuation is >40dB on 160m and >60dB on 80m.

You just connected it between the DSL-splitter and the modem. Move the RJ12 connector from the modem to the filter “Line” jack and connect the short cable with RJ12 connectors (included) between the “Modem” jack and the modem.

more info


Elecraft Microphone adapter cables E1a,E2a

The cables are used as adapters from Mic to Control-RRC and from Radio-RRC to Radio. Schematics are available in the users manual.

Color mark = Red

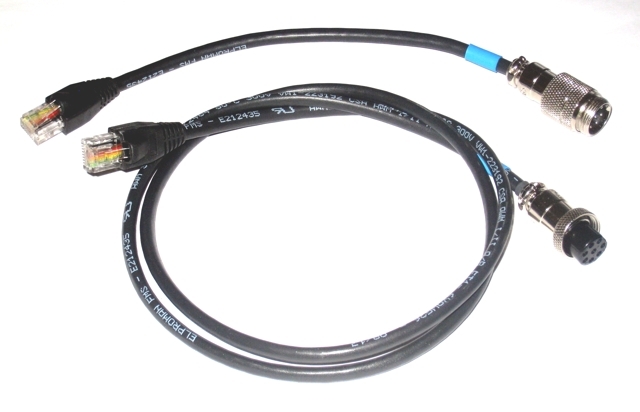

ICOM Microphone adapter cables I11a,I10a

The cables are used as adapters from Mic to Control-RRC and from Radio-RRC to Radio. Fits all ICOM radios with 8-pin circular mic connectors. Schematics are available in the users manual.

Color mark = Blue


Kenwood Microphone adapter cables K14a,K15a

The cables are used as adapters from Mic to Control-RRC and from Radio-RRC to Radio. Fits all Kenwood radios with 8-pin circular mic connectors. Schematics are available in the users manual.

Color mark = Red

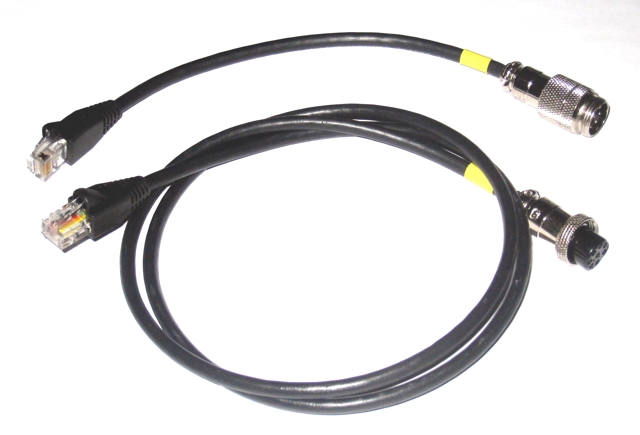

Yaesu Microphone adapter cables Y5a, Y6a

The cables are used as adapters from Mic to Control-RRC and from Radio-RRC to Radio. Fits all Yaesu radios with 8-pin circular mic connectors. Schematics are available in the users manual.

Color mark = Yellow


Elecracft K3-Twin Accessory kit



Complete package with of cables and accessories which is included in the K3-Twin package, used for upgrade a standard RRC-1258MkIIs package. Check the Users manual for pictures

Included in the package is:






Elecraft Cat Cables

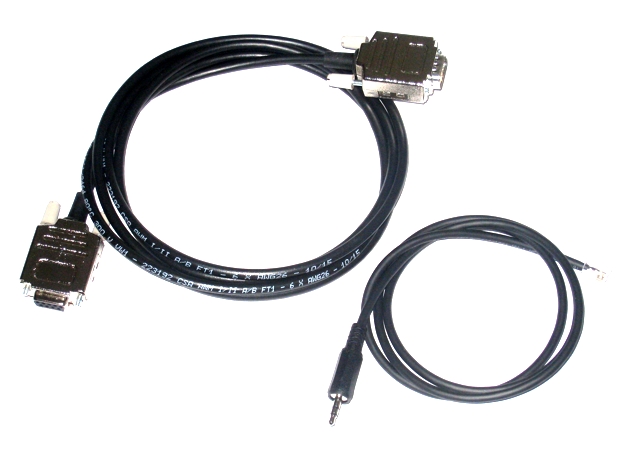

Elecraft K2/K3 CAT Cables E1c,E2c

The cables are used from PC- to Control-RRC and from Radio-RRC to Radio. Work with all Elecraft K2/K3 when using a PC to control the radio via the CAT interface. Schematics are available in the users manual.

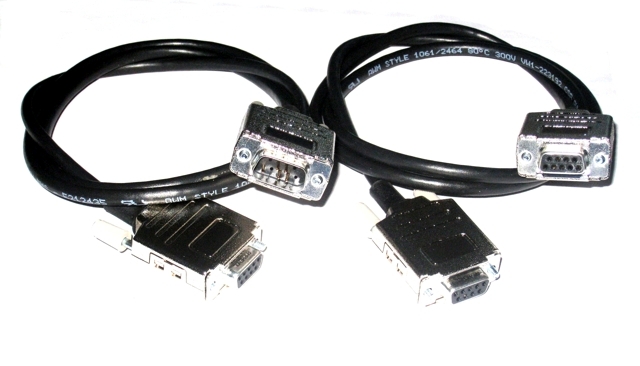

E1c = DSUB -9p F to DSUB -9p M 2m

E2c = DSUB -9p M to DSUB -9p F 1m




ICOM CI-V control cables I10c,I11c

The cables are used from PC- to Control-RRC and from Radio-RRC to Radio. Work with all ICOMs when using a PC to control the radio via CI-V. Schematics are available in the users manual.

I10c = DSUB -9p F to DSUB -9p M 2m

I11c = Modular 4/6 to 3.5 mm plug 1m






Kenwood CAT Cables K14c,K15c

The cables are used from PC- to Control-RRC and from Radio-RRC to Radio. Work with all Kenwoods when using a PC to control the radio via the CAT interface. Schematics are available in the users manual.

K14c = DSUB -9p F to DSUB -9p M 2m

K15c = DSUB -9p F to DSUB -9p F 1m




Yaesu CAT cables Y5c,Y6c

The cables are used from PC- to Control-RRC and from Radio-RRC to Radio. Work with all Yaesus with RS-232 Cat port when using a PC to control the radio via the CAT interface. Also works together with CT-62 for FT-8×7. Schematics are available in the users manual.

Y5c = DSUB -9p F to DSUB -9p M 2m

Y6c = DSUB -9p F to DSUB -9p F 1m

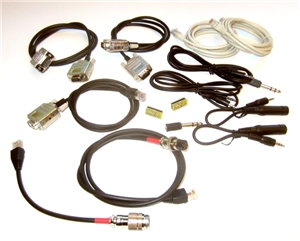

Adapter kit

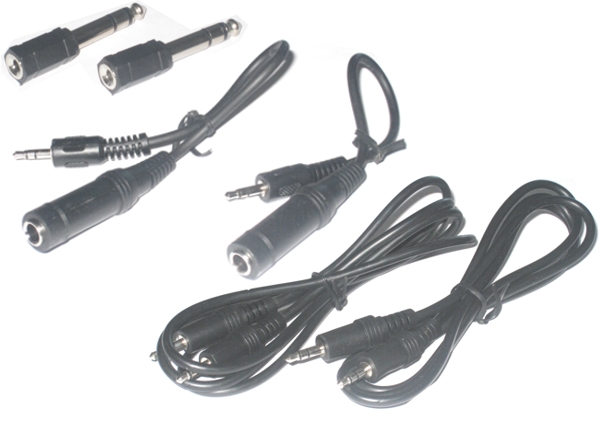

Including cables for audio, CW-keying and adapters from and to 1/8″ to 1/4″ plugs.

2 pc – Cable 3.5 mm – 3.5 mm

2 pc – Adapter ¼”” to 3.5 mm

2 pc – Adapter 3.5 mm to ¼”


HM-133 Adapter for IC-2820

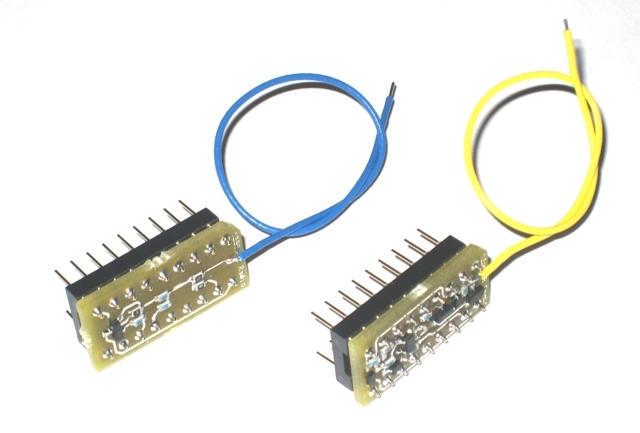

The adapters will make it possible to use the orginal HM-133 microphone. The adapter should be mounted in the strapping sockets in both Control-RCC and Radio-RRC

One wire has to be soldered in each unit

The adapters are delivered in pairs.

(They will only work together with RRC-1258MkIIs)


HM-133 Adapter for ID-E880

the adapters will make it possible to use the orginal HM-133 microphone. The adapter should be mounted in the strapping sockets in both Control-RCC and Radio-RRC

One wire has to be soldered in each unit

The adapters are delivered in pairs.

(They will only work together with RRC-1258MkIIs)


Adapter for IC-2725

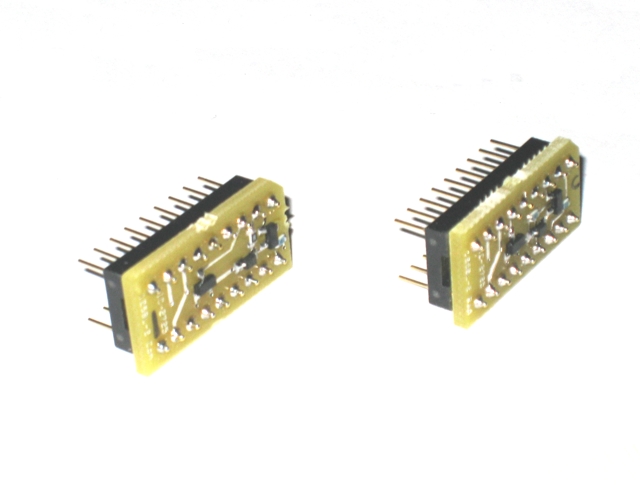

The adapters inverts the serial port for the IC-2725 as described in the Users Manual. The adapters should be mounted in the strapping sockets in both Control-RCC and Radio-RRC.

No soldering is needed

The adapters are delivered in pairs.

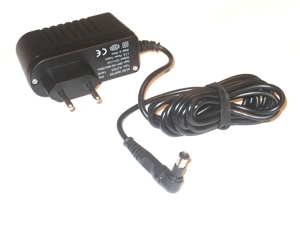

Euro Power Supply
for RRC/WebSwitch

230V ->12V/1.2A.

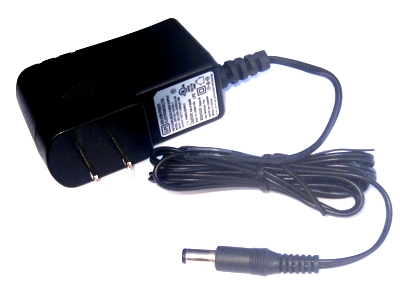

US Power Supply
for RRC/WebSwitch



100-240V ->12V/1.0A.




Rotator Control Unit

To create a web based rotator control it’s possible to connect a Rotator control Unit (RCU) to the Webswitch 1216H. The RCU is connected via the 1-wire bus to the webswitch. The RCU has three 16A relays for CW and CCW rotation and for breake control. For the the azimuth (direction) reading there is  A/D input which handles 0-15V. The A/D input is fully issolated. The RCU can be connected to most of the current available rotators  and rotating tower controls. The indicatior can be calibrated every 30 degrees to handle potentiometers which is not linear.

When using the Webswitch and the RCU you do not need to use the RRC-serial ports for rotator control.
